Mastheads – LTE compliant
-

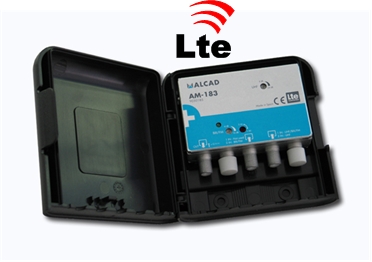

Model : AM-183
- VHF 16 dB gain, adj 20dB
- UHF 24 dB gain, adj 16dB
- 1 / 2 inputs
- 12 VDC
- 108 dB output
- F type connections
-

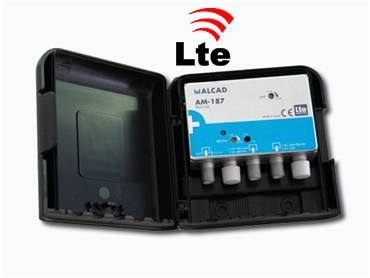

Model: AM-187
- VHF 20 dB gain, adj 20dB
- UHF 34 dB gain, adj 16dB
- 1 / 2 inputs
- 12 VDC
- 108 dB output
- F type connections
