Description

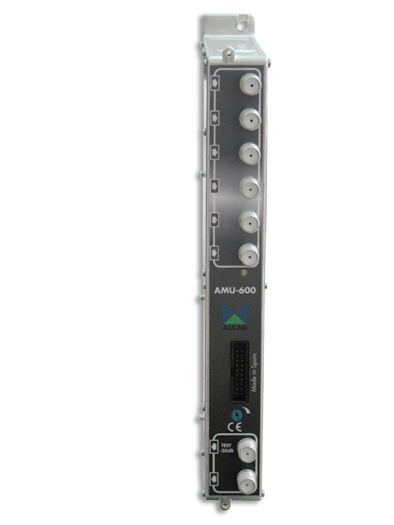

The AMU-600 is a active combiner with 6 inputs.

Applications
For combining a large number of Alcad RF modules as used in larger MATV Digital / Analogue terrestrial TV installations. Suitable for those installations where there are more than 12 modules as part of the head-end and isolation is required for maximum performance.

Characteristics
The AMU-600 incorporates 6 seperate inputs enabling 36+ modules/channels to be combined.

Documents

• Product Specifications

• AMU-600-Installation

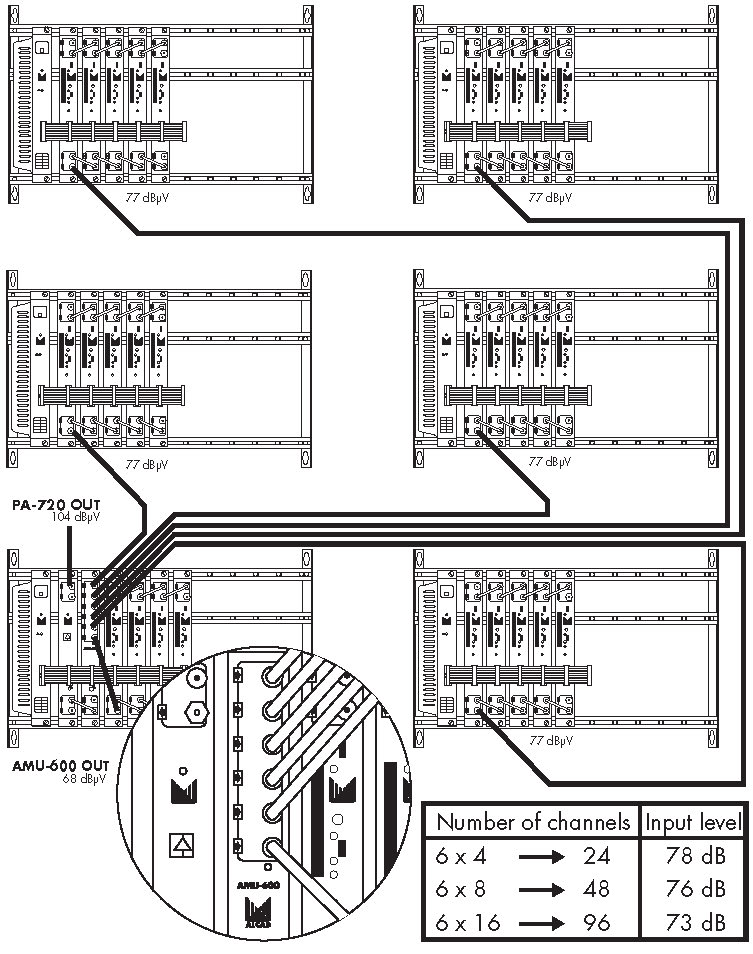

Typical Application
